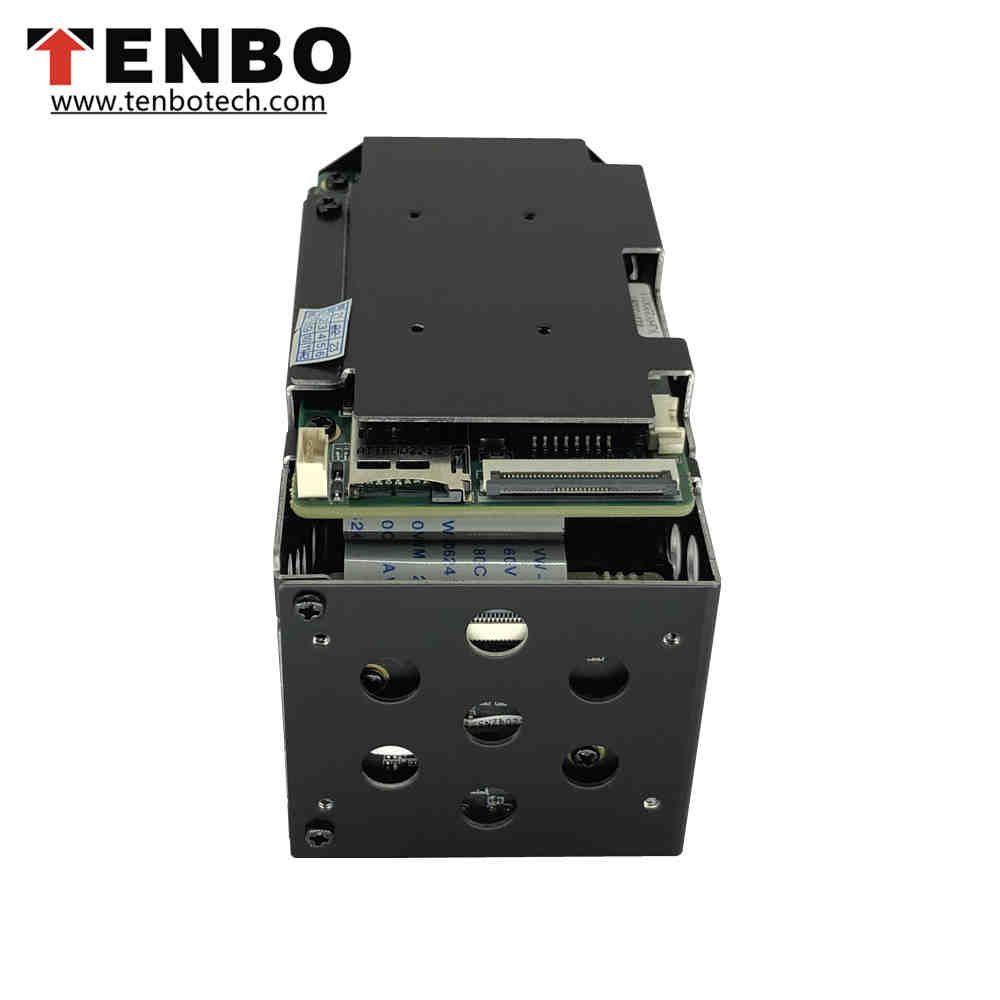

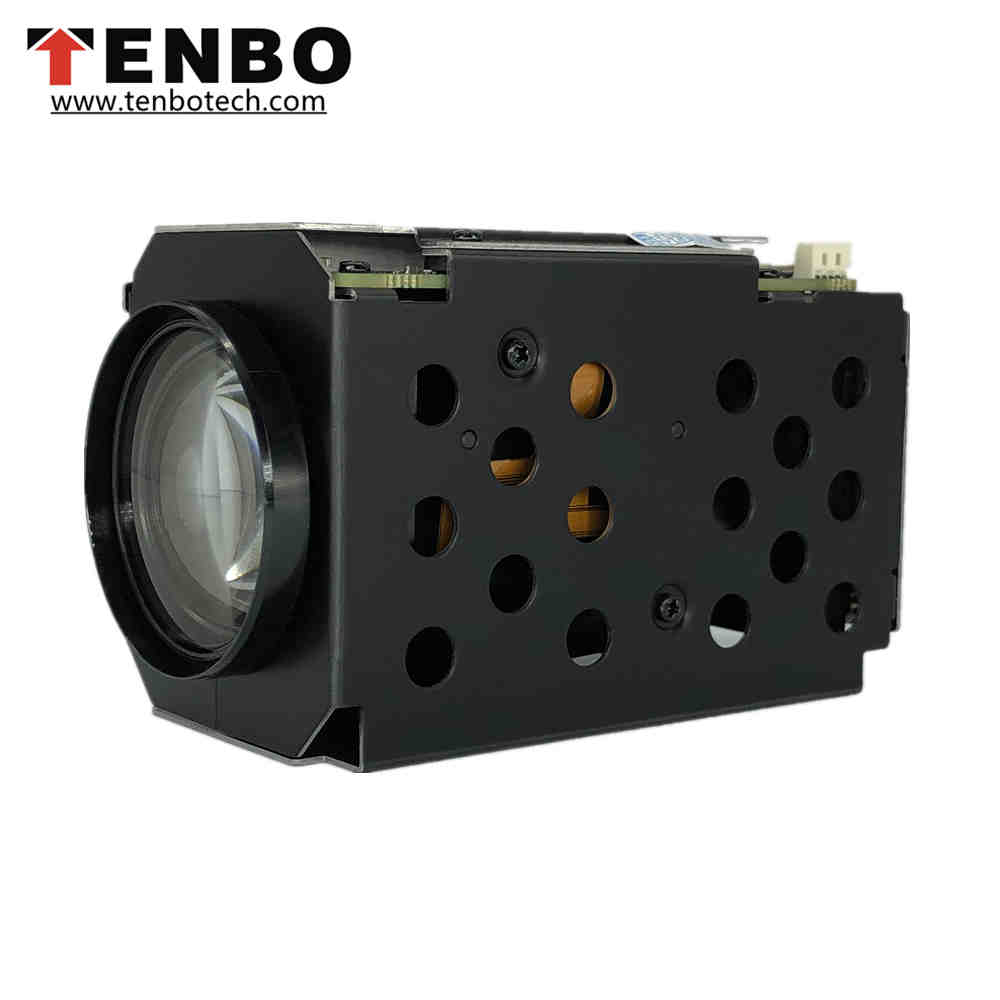

2MP LVDS & IP HD

TB-DM7236NHL

2MP 1080P 60fps 36x Optical Zoom Starlight Low Latency HD IP+LVDS Block Zoom Camera Module

• 1/2.8" 2MP Progressive Scan CMOS sensor
• 1080P@30/25fps, 720P@30/25fps

• H.265/H.264 Compression

• Lens f=4.5mm~162mm
• 36x Optical Zoom & 16x Digital Zoom
• F1.5(wide) ~ F4.0(tele)
• Day & Night (ICR)

• Privacy Mask Function, Motion Detection

• WDR/BLC/HLC/AGC/DNR
• Defog Function
• Supports VISCA, ONVIF, PELCO Protocol
• Video Out : IP+LVDS / IP

SPECIFICATION：

Model No.

TB-DM7236NHL

Image Sensor

1/2.8" Progressive CMOS Image Sensor

Min. illumination

Color:0.001 Lux @(F1.5,AGC ON);  B/W:0.0005Lux @(F1.5,AGC ON)

Shutter

1/25s to 1/100,000s; Supports slow shutter

AUTO IRIS

DC-IRIS

Zoom

36x Optical Zoom

Focal Length

f =4.5mm ~ 162mm

Aperture Ratio

F1.5 (wide) ~ F4.0 (tele)

Angle of View (D, H, V)

58.9 ~ 2.4° Wide~Tele

Min.Distance

100mm ~ 1500mm

Video Output

IP+LVDS (+SDI / HDMI / USB / CVBS)

Video Compression

H.265 / H.264 / Digital

H.265

Main Profile

H.264

BaseLine Profile / Main Profile / High Profile

Video Bitrate

32 Kbps~16Mbps

Audio Compression

 G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM

Audio Bitrate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)

Main Stream

 50Hz: 50/25fps (1920×1080, 1280×960, 1280×720);

60Hz: 60/30fps (1920×1080, 1280×960, 1280×720)

Third Stream

 50Hz: 25fps(704×576);  60Hz: 30fps(704×576)

Image Settings

Corridor mode, Saturation, Brightness, Contrast, Sharpness adjusted by IE/ Client

BLC

Support

Exposure Mode

AE / Aperture Priority / Shutter Priority / Manual Exposure

Focus Mode

Auto Focus / One Focus / Manual Focus / Semi-Auto Focus

Area Exposure / Focus

Support

Defog

Support

Day/Night Switch

 Automatic, Manual, Timing, Alarm trigger

DNR

Support 3D DNR

Storage Function

Support Micro SD / SDHC / SDXC card (256G) disconnected local storage,

NAS (NFS, SMB / CIFS support)

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6

Interface Protocol

ONVIF (PROFILE S, PROFILE G)

External Interface

LVDS(Support 60/50fps) &

36pin FFC (Network port, RS485, RS232, CVBS, SDHC, Alarm In/Out, Line In/Out, power) & USB

Working Temperature

 -30℃~60℃, humidity≤95%(non-condensing)

Power Supply

 DC12V±10%

Power Consumption

2.5W (4W MAX)

Dimensions

 L97.5*W50*H61.5 mm

Weight

268g

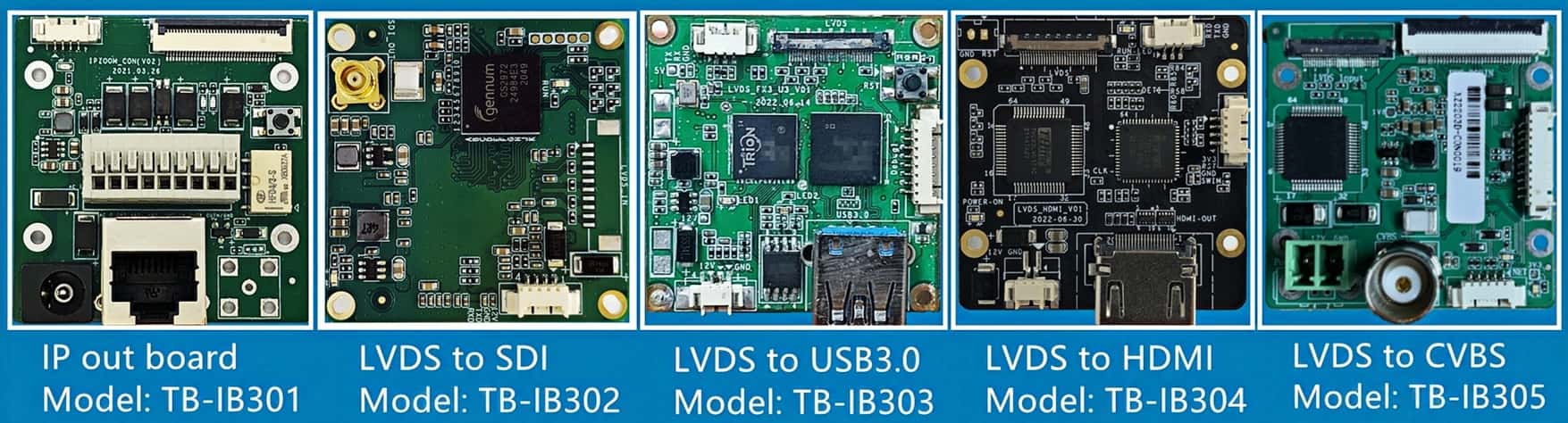

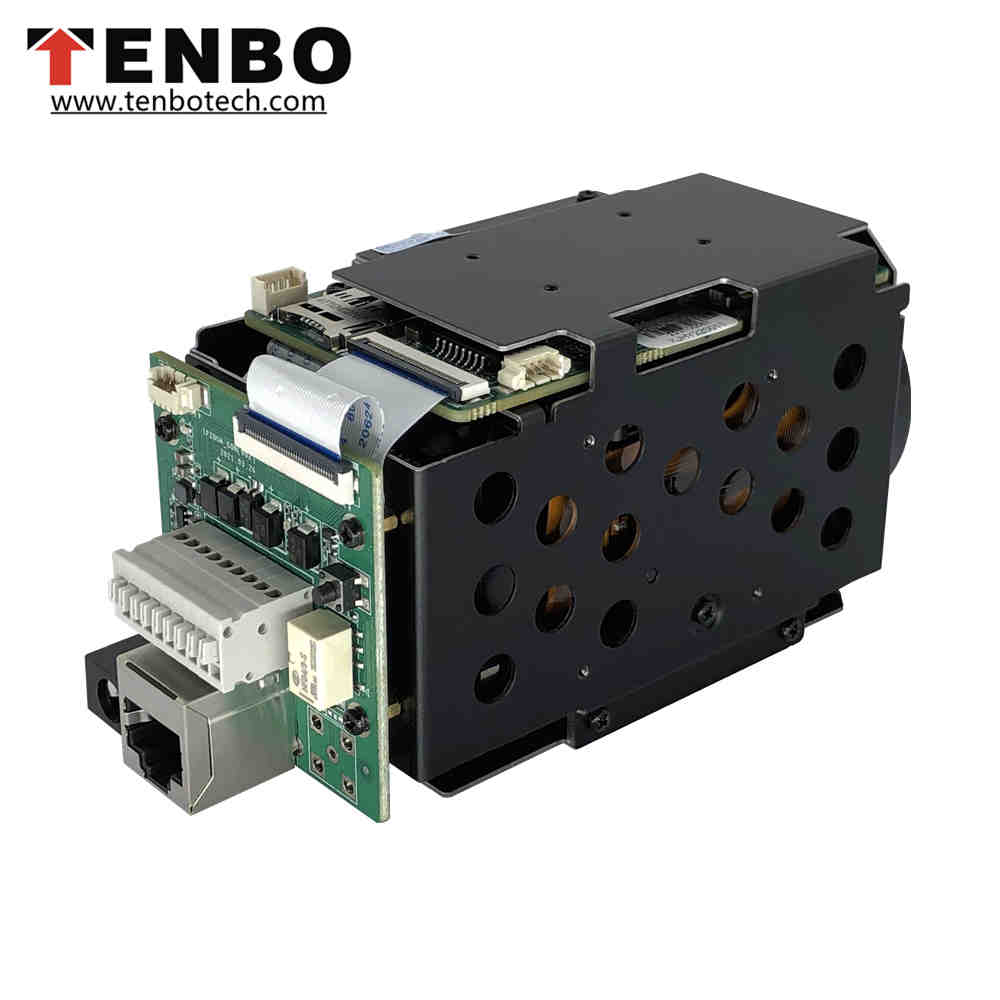

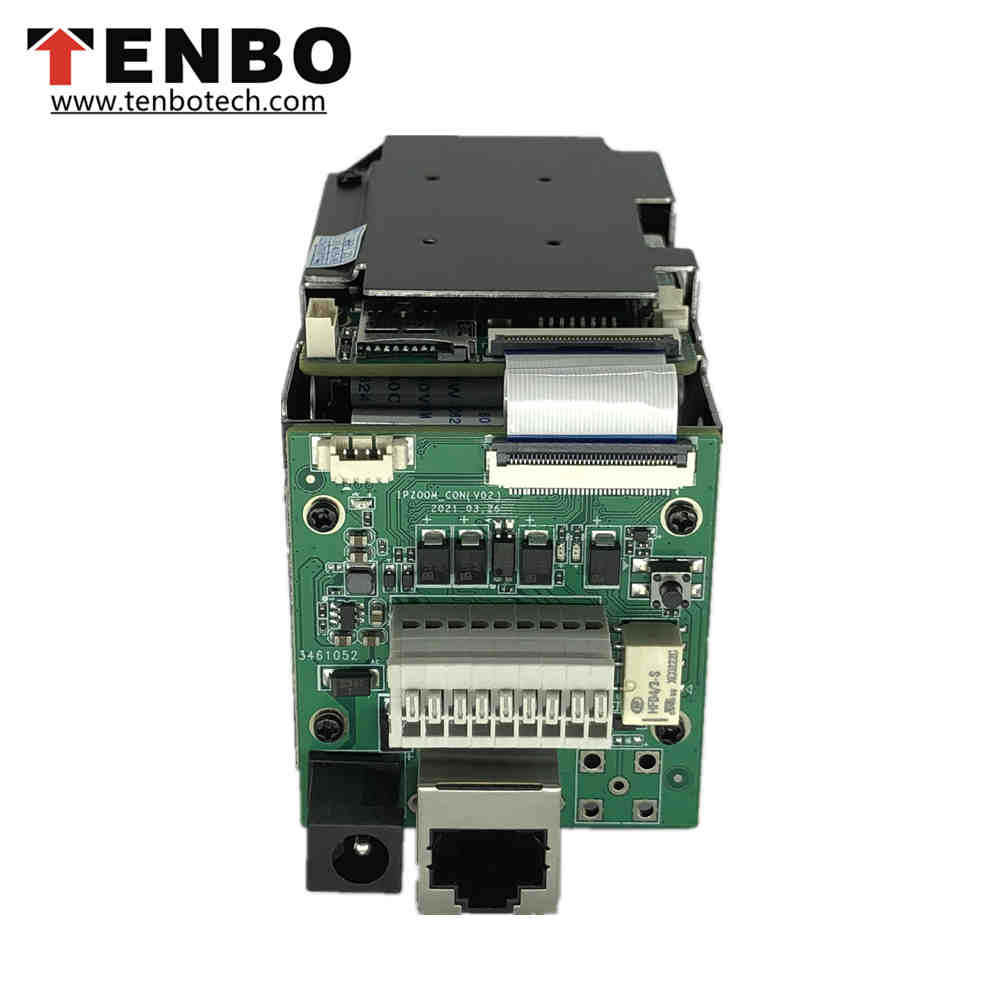

 OPTIONAL BOARDS:

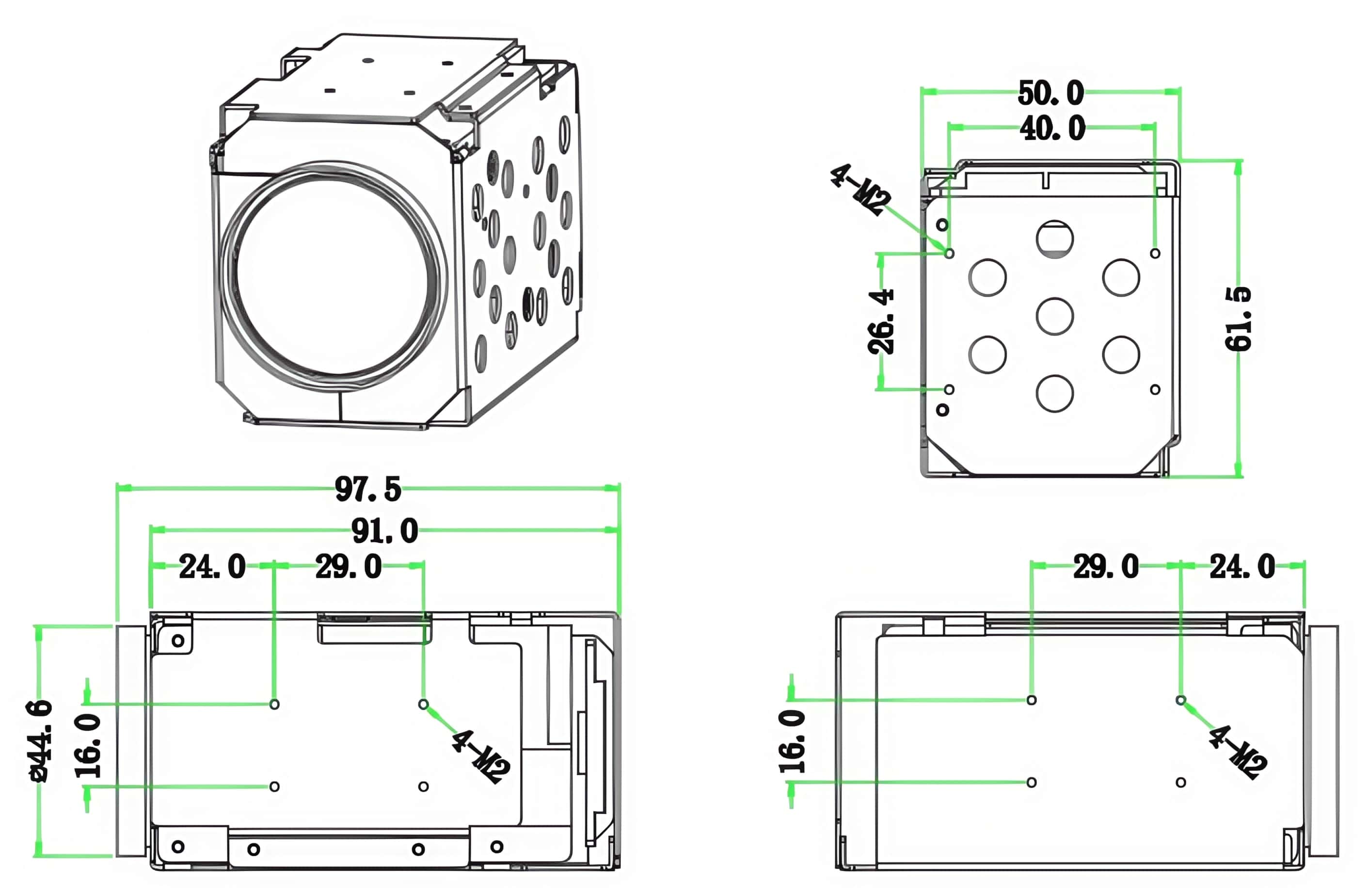

 DIEMNSION (mm):
